Fixed Enrollments | EBANX Developers Academy

Pix Automático works by establishing an authorization, achieved through an enrollment process, between merchant and customer, and referencing it in every recurring payment. This way, the customer's bank can validate the payment against the enrollment and transfer funds without the need for customer interaction, given that they know the payment request has been validated and comes from a valid source.

The simplest form of Pix Automático enrollments are fixed subscriptions, where the price stays fixed and changes are made only via new agreements with the customer, usually after a predetermined period of time.

By following this basic integration guide, you will understand how you can create enrollments and accept Pix Automático recurring payments in your check-out, by using EBANX Direct API. To complete a payment with Pix Automático you will need a few API calls that will create an enrollment for your customer, the recurring payment and provide the necessary information for the customer to complete the transaction.

Requirements

EBANX Sandbox Account - Provides a test environment where you can explore our payment solutions.
- Sign up for an EBANX Sandbox Account.
- Complete the online form.
- Our team will reach out to you shortly.
API credentials - Ensure you have your EBANX integration key. If not, complete the Merchant Signup Form.

Instructions

To complete a Pix Automático enrollment and recurring payments, please follow the steps below.

Call the /ws/userenrollment API to get the Enrollment QR Code

Pix Automático generates a QR Code, which is scanned by the user in their banking app of choice. To get this, you just need to call the end-point ws/userenrollment (server-side) with the following required fields:

Basic parameters

Parameter	Requirement	Description
`integration_key`	Required	Your integration key
`payment_type_code`	Required	Must be `pix-automatico`
`operation`	Required	Must be `enrollment`
`expiration_time_in_seconds`	Optional	QR code expires based on the duration specified in this parameter or the default set by EBANX (24 hours). The time must be specified in seconds.

Enrollment data

Parameter	Requirement	Description
`country`	Required	Must be `BR`
`email`	Required	Customer e-mail
`name`	Required	Customer name
`document`	Required	Customer document
`merchant_enrollment_code`	Required	Unique enrollment code
`subscription_name`	Required	Descriptor of the service being provided, which will be displayed in the customer's banking app
`expiration_date`	Optional	If necessary, defines when the enrollment is no longer valid and no further payments will be charged
`frequency`	Required	The billing cycle of the enrollment. Available frequencies are: `weekly`,`monthly`, `quarterly`,`halfyearly`,`yearly`
`retry`	Required	Determines whether the merchant will retry payments that fail on the expect billing day. The available retry policies are: `not_allowed` for no additional attempts or `allow_3R_7D` for up to three retries within seven days after the first payment
`fixed_amount`	Required	Provided when recurring payments will have a fixed value. For variable enrollments, use `max_amount_floor` instead
`start_date`	Required	Day when the payment that initiates the subscription will be charged

Sample request

curl -X POST 'https://sandbox.ebanx.com/ws/userenrollment' \
--header 'Content-Type: application/json' \
--data '{
    {
    "integration_key": "{{integration_key}}",
    "payment_type_code": "pix-automatico",
    "operation": "enrollment",
    "expiration_time_in_seconds": 3600,
    "enrollment": {
        "country": "BR",
        "email": "{{customer_email}}",
        "name": "{{customer_name}}",
	    "document": "{{customer_document}}",
        "merchant_enrollment_code": "{{unique_enrollment_code}}",
        "subscription": {
            "subscription_name": "Descriptor of the subscription.",
            "expiration_date": "2025-12-30",
            "frequency": "monthly",
            "retry": "allow_3R_7D",
            "fixed_amount": 19.90,
            "start_date": "2024-12-15"
        }
    }'

A successful request will return a JSON response like the one below. The Pix Automático raw QR Code value will be in the parameter qr_code_value.

You can also use the redirect_url to redirect your customer to an external page to display the Pix Automatico voucher and QR code. In Sandbox environment, you will find in the redirect_url the link to use our Simulator.

{
    "status": "SUCCESS",
    "redirect_url": "https://sandbox.ebanx.com/ewallet/recurrency-agreement?return_url=https%3A%2F%2Fsandbox.ebanx.com%2Fws%2Fcustomerenrollment-finish%2Ffake%3Fenrollment%3DMTYwOTA6bXktZW5yb2xsbWVudC0zMzA%253D&enrollment_uuid=PpKBQFh3wwa4agh9e",
    "enrollment": {
        "merchant_enrollment_code": "{{unique_enrollment_code}}",
        "country": "BR",
        "name": "{{customer_name}}",
        "email": "{{customer_email}}",
        "subscription": {
            "subscription_name": "Descriptor of the subscription.",
            "start_date": "2024-12-15",
            "expiration_date": "2025-12-30",
            "frequency": "monthly",
            "retry": "allow_3R_7D",
            "fixed_amount": "19.90",
            "qr_code_value": "00020101021226780014br.gov.bcb.pix2556fake-pix.com.br/qr/v2/ACA4311F88661BC0D48200487EF1BCD95204000053039865802BR5910FAKEPIX Ltda6008CURITIBA62070503***36923"
        }
    }
}

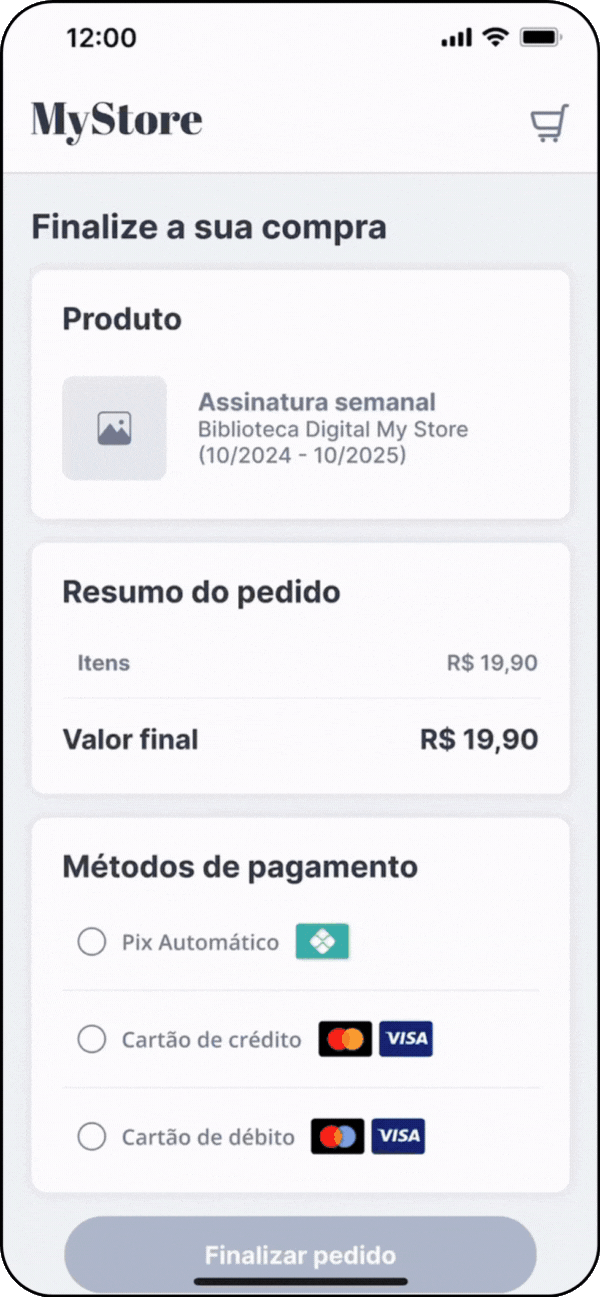

Presenting the Pix QR Code
You can present the QR code by rendering the code at your page.

Copying QR Code to Clipboard
Alternatively, you can simply deliver the QR Code number from qr_code_value to your customer's clipboard so they can paste it into their banking/wallet app.
At this point you have a pending enrollment and will be notified via webhook when there is a status change.

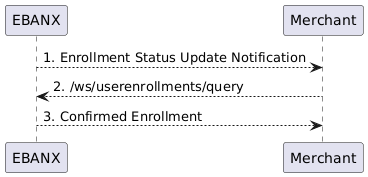

Confirming the Enrollment
As soon as the enrollment is confirmed by the customer in their banking app, the enrollment status is modified from peding to accepted and a Status Update notification is sent to the URL defined in your merchant configuration.
```
{
   "operation":"enrollment_status_change",
   "notification_type":"update",
   "merchant_enrollment_code":"{{unique_enrollment_code}}"
}
```
Using the ID provided in merchant_enrollment_code, use the /ws/userenrollments/query endpoint to get the latest status of the enrollment.
Check the example:
```
curl -X POST 'https://sandbox.ebanx.com/ws/userenrollments/query' \
--header 'Content-Type: application/json' \
--data '{
    "integration_key": "{{integration_key}}",
    "enrollment": {
        "merchant_enrollment_code": "{{unique_enrollment_code}}"
    }
}'
```
A successful request will return a JSON response like the one below, with a status of accepted for the enrollment approved by the customer. Other possible enrollment statuses include not accepted, pending, expired, not_found and revoked, depending on the actions taken by the merchant or customer.
```
{
    "status": "SUCCESS",
    "payment_type": "pix-automatico",
    "enrollment": {
        "status": "accepted",
        "email": "",
        "spi_code": "RR2101818220250811jYwwlNucP9A"
    },
    "subscription": {
        "subscription_name": "Descriptor of the subscription",
        "start_date": "2024-12-15",
        "expiration_date": "2025-12-30",
        "frequency": "monthly",
        "retry": "allow_3R_7D",
        "fixed_amount": "19.90"
    }
}
```
Important:
Pending enrollments expire by default after 24 hours. If the customer does not complete the process in time, the enrollment will be marked as expired. You can override this behavior by setting the field expiration_time_in_seconds, which defines the QR code expiration time for each request.

Call the /ws/direct API to schedule the Pix Automático payment

Important

The recurring payment request must be sent between 2 and 10 days before the next billing day. For example, if a payment is due on January 17th, the payment request must be sent no earlier than January 7th and no later than January 15th.

Scheduling a recurring payment with Pix Automático is really straightforward. The following fields will be required:

Parameter	Requirement	Description
`merchant_payment_code`	Required	Unique merchant payment code
`amount_total`	Required	Total amount to be charged. Note that the amount must match the one set in the enrollment
`currency_code`	Required	Must be `BRL`
`country`	Required	Must be `BR`
`payment_type_code`	Required	Must be `pix-automatico`
`email`	Required	Customer e-mail
`name`	Required	Customer name
`document`	Required	Customer document
`due_date`	Required	Expected billing date (DD/MM/YYYY) - it must be between 2 and 10 days after the current date
`merchant_enrollment_code`	Required	The enrollment code generated in the previous steps. The enrollment must have a `accepted` status to be used in recurring payments

Check the example:

curl -X POST 'https://sandbox.ebanx.com/ws/direct' \
  --header 'Content-Type: application/json' \
  --data '{
    "integration_key": "{{integration_key}}",
    "payment": {
      "merchant_payment_code": {{merchant_payment_code}},
      "amount_total": 19.90,
      "currency_code": "BRL",
      "country": "BR",
      "payment_type_code": "pix-automatico",
      "email": "{{customer_email}}",
      "name": "{{customer_name}}",
      "document": "{{customer_document}}",
      "due_date": "17/01/2024",
      "enrollment": {
        "merchant_enrollment_code": "{{merchant_enrollment_code}}"
      }
    }
  }'

A successful request will return a JSON response like the one below. The Pix Automático payment will have a pending (PE) status and will be confirmed later by the customer's bank.

{
    "payment": {
        "hash": "{{unique_payment_hash}}",
        "country": "BR",
        "merchant_payment_code": "{{unique_payment_code}}",
        "status": "PE",
        "status_date": "2024-01-17 21:11:36",
        "open_date": "2024-01-10 13:00:00",
        "confirm_date": null,
        "transfer_date": null,
        "amount_br": "19.90",
        "amount_ext": "19.90",
        "amount_iof": "0.00",
        "currency_rate": "1.0000",
        "currency_ext": "BRL",
        "due_date": "2024-01-17",
        "payment_type_code": "pix-automatico",
        "redirect_url": "https://sandbox.ebanx.com/ws/redirect?hash=683f3c53c065aab9b5151a38cd6b717e29df06dcb60cbb3c",
        "pre_approved": false,
        "enrollment": {
            "status": "accepted",
            "merchant_enrollment_code": "{{unique_enrollment_code}}",
        },
        "subscription": {
            "subscription_name": "Descriptor of the subscription",
            "start_date": "2024-12-15",
            "expiration_date": "2025-12-30",
            "frequency": "monthly",
            "retry": "allow_3R_7D",
            "fixed_amount": "19.90"
        },
        "retries": {
            "retry_status": "LOCKED",
            "available_retries": 3,
            "payment_attempts": [
                {
                    "attempted_at": "2024-01-17 21:11:33",
                    "attempt_response": "PENDING"
                }
            ]
        }
    },
    "status": "SUCCESS"
}

note

In the Sandbox environment, the redirect_url in the response of your payment schedule will lead you to the payment Simulator, allowing you to reproduce multiple payment processing scenarios.

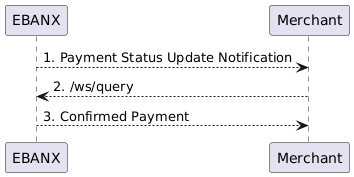

Confirming the Payment

As soon as the payment is confirmed by the customer's bank, the payment status is modified from PE to CO and a Status Update notification is sent.

{
   "operation":"payment_status_change",
   "notification_type":"update",
   "merchant_payment_code":"{{unique_payment_code}}"
}

Using the hash provided in the payment response, use the /ws/query endpoint to get the latest status of the payment.

Check the example:

curl -X POST 'https://sandbox.ebanx.com/ws/query' \
--header 'Content-Type: application/json' \
--data '{
    "integration_key": "{{integration_key}}",
    "hash": "{{unique_payment_hash}}"
}'

A successful request will return a JSON response like the one below, with a status of CO for the successful recurring payment.

{
    "payment": {
        "hash": "{{unique_payment_hash}}",
        "country": "BR",
        "merchant_payment_code": "{{unique_payment_code}}",
        "status": "CO",
        "status_date": "2024-01-17 21:11:36",
        "open_date": "2024-01-10 13:00:00",
        "confirm_date": null,
        "transfer_date": null,
        "amount_br": "19.90",
        "amount_ext": "19.90",
        "amount_iof": "0.00",
        "currency_rate": "1.0000",
        "currency_ext": "BRL",
        "due_date": "2024-01-17",
        "payment_type_code": "pix-automatico",
        "redirect_url": "https://sandbox.ebanx.com/ws/redirect?hash=683f3c53c065aab9b5151a38cd6b717e29df06dcb60cbb3c",
        "pre_approved": false,
        "transaction_status": {
          "acquirer": "EBANX IP",
          "code": "OK",
          "description": "Recurring payment successfully paid",
          "description_code": "ACCEPTED"
        },
        "enrollment": {
          "status": "accepted",
          "merchant_enrollment_code": "{{unique_enrollment_code}}",
        },
        "subscription": {
            "subscription_name": "Descriptor of the subscription",
            "start_date": "2024-12-15",
            "expiration_date": "2025-12-30",
            "frequency": "monthly",
            "retry": "allow_3R_7D",
            "fixed_amount": "19.90"
        },
        "retries": {
            "retry_status": "ENDED",
            "available_retries": 0,
            "payment_attempts": [
                {
                    "attempted_at": "2024-01-17 21:11:33",
                    "attempt_response": "CONFIRMED"
                }
            ]
        }
    },
    "status": "SUCCESS"
}

Now, for each new billing cycle, simply repeat 5 and 6!

Still need help?

We hope this article was helpful. If you still have questions, you can explore the following options:

Merchant support: Contact our support team at integration@ebanx.com for assistance.
Not a partner yet? Please complete the Merchant Signup Form, and our commercial team will reach out to you.
