Pagosnet

This guide details how to integrate Pagosnet into your existing EBANX Direct API setup. Pagosnet is a cash-based payment option that enables customers to complete online transactions by paying in cash at authorized physical locations. Integrating Pagosnet with the EBANX Direct API provides a convenient, accessible solution for customers who prefer or require cash payments, expanding payment flexibility and accessibility.

Requirements​

  • API credentials - Ensure you have your EBANX integration key. If not, complete the Merchant Signup Form.
  • Familiarity with EBANX Direct - This setup follows the same general structure as other payment methods, with a few unique parameters. See Direct API Guide for more info.

Instructions​

Follow the steps below.

  1. Select your environment

    Select the appropriate environment for your integration. Use the sandbox environment for testing, or the production environment for live transactions. Use the URL for your HTTP requests based on your selection.

    https://sandbox.ebanx.com/ws/direct

  2. Create a Pagosnet link

    Pagosnet operates as a voucher-based payment method, so you’ll need to redirect your customer to a page displaying the voucher details. To obtain this redirection link, call the ws/direct endpoint with the required parameters.


    Defining API parameters

    You must provide required parameters for payment requests. These parameters ensure successful completion of transactions.

    Essential parameters

    • payment.payment_type_code - Specifies the payment method to be used for the transaction.
    • payment.currency_code - Three-letter code of the payment currency.
    • payment.amount_total - Total amount to be charged.

    Additional parameters

    • EBANX Integration Key - Used to authenticate and authorize API requests.
    • Customer Information
      • Includes details such as the customer name, email, address and document number (Depends on the requirements of the payment method or local regulations).
      • While not mandatory for all countries or payment methods, providing this information can enhance security and increase the likelihood of successful processing.
    • Additional Context - Extra data for specific methods or countries.

    To learn more about API parameters, please refer to the
    API Reference Guide chevron_right

    At the API Reference Guide, select Bolivia and Pagosnet from the dropdown menues.

  3. Sample request

    Use the following example to initiate a request.

    curl -X POST \
      --location 'https://sandbox.ebanx.com/ws/direct' \
      --header 'Content-Type: application/json' \
      --data '{
        "integration_key": "your_ebanx_integration_key",
        "operation": "request",
        "payment": {
          "name": "José Silva",
          "email": "joseperu@example.com",
          "phone_number": "0405777687",
          "country": "bo",
          "payment_type_code": "pagosnet",
          "merchant_payment_code": "0x0W28D03-BO-T02", // Must be unique.
          "currency_code": "BOB",
          "amount_total": "100"
        }
      }'

  4. Sample response

    The voucher URL will be in the parameter payment.voucher_url.

    {
      "payment": {
        "hash": "6746074f71526c3d2c0374bcf1944305a2f48926c6a3e342",
        "country": "bo",
        "merchant_payment_code": "0x0W28D03-BO-T02",
        "order_number": null,
        "status": "PE",
        "status_date": null,
        "open_date": "2024-12-06 20:55:41",
        "confirm_date": null,
        "transfer_date": null,
        "amount_br": "100.00",
        "amount_ext": "100.00",
        "amount_iof": "0.00",
        "amount_ext_requested": "100.00",
        "currency_rate": "1.0000",
        "currency_ext": "BOB",
        "due_date": "2024-12-09",
        "instalments": "1",
        "payment_type_code": "pagosnet",
        "voucher_url": "https://sandbox.ebanxpay.com/print/voucher/execute?hash=6746074f71526c3d2c0374bcf1944305a2f48926c6a3e342",
        "pre_approved": false,
        "capture_available": null,
        "customer": {
          "document": "",
          "email": "joseperu@example.com",
          "name": "JOSE SILVA",
          "birth_date": null
        },
        "single_transaction": {
          "amount_local": "0.00",
          "amount_crossborder": "100.00"
        }

      },
      "status": "SUCCESS"
    }
    At this stage, the payment will appear as pending (PE) in your
    EBANX Dashboardchevron_right

  5. Redirect customer to voucher URL

    Redirect your customer to the URL provided in the voucher_url parameter. Once redirected, they will be able to view or print the voucher.

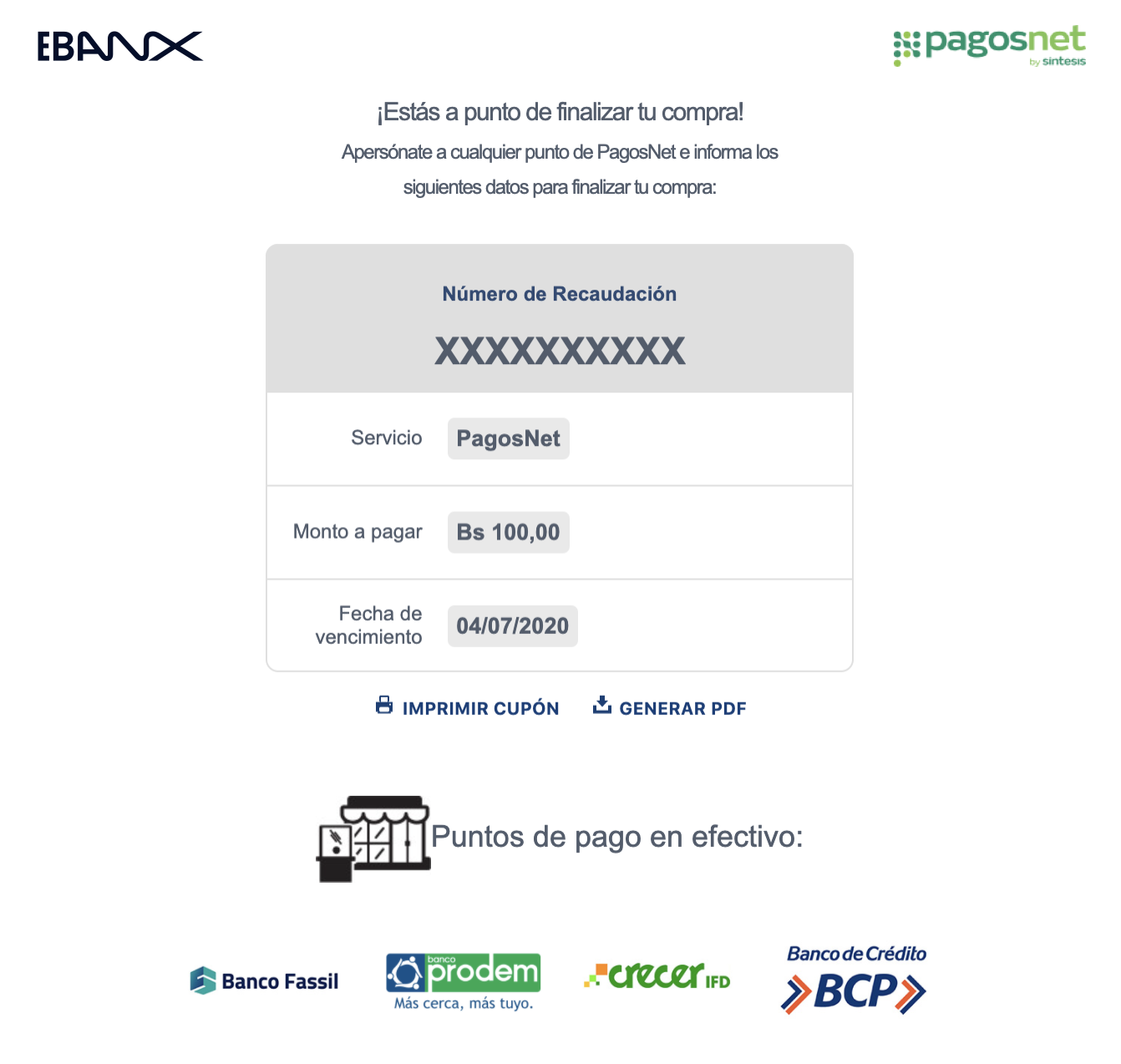

    Sample voucher:

    PagosNet

  6. Monitor payment for status changes

    Notifications

    Status

    • After receiving a notification, retrieve the payment status.

    • When a payment is confirmed, the status will change from pending (PE) to confirmed (CO). If the customer does not complete the payment, the status will automatically update to cancelled (CA).

  7. Congratulations!

    You have succesfully integrated PagosNet.

    For more information, refer to the
    Direct API reference guidechevron_right

Resources​

Use the following resources when testing in your sandbox environment.
